FiiO JadeAudio KA13 Dual CS43131 Portable DAC AMP for iOS Android 3.5mm 4.4mm Outputs 550mW
$134.72
Product Highlights
If you’re on the lookout for a portable DAC amplifier that packs a punch, the FiiO JadeAudio KA13 is a fantastic choice. This little gem is designed to enhance your audio experience, whether you’re using it with your smartphone or laptop. With its dual CS43131 chips, it delivers exceptional sound quality that will make your favourite tracks come alive.
Compact and Versatile
The KA13 is not just compact; it’s also incredibly versatile. It features both 3.5mm and 4.4mm balanced outputs, allowing you to connect it to a wide range of devices. Whether you’re listening to music on your iOS or Android device, or even your laptop, this DAC amplifier has you covered. Plus, with a powerful output of 550mW, it can drive even the most demanding headphones with ease.
Easy to Use
One of the best things about the KA13 is how user-friendly it is. Simply plug it into your device, and you’re ready to go! No complicated setups or software installations required. It’s perfect for those who want to enjoy high-quality audio without the fuss.
Pros
- Exceptional sound quality with dual CS43131 chips.
- Compact and portable design, perfect for on-the-go listening.
- Compatible with both iOS and Android devices.
- Offers both 3.5mm and 4.4mm balanced outputs.
- High output power of 550mW for driving demanding headphones.
Cons
- May not be suitable for users who prefer a more extensive feature set.
- Limited to wired connections, which may not appeal to everyone.
- Some users may find the price point a bit high for a portable DAC.
In summary, the FiiO JadeAudio KA13 is a brilliant choice for anyone wanting to elevate their audio experience. Its compact size, ease of use, and impressive sound quality make it a must-have for music lovers everywhere!
Summary
| Parameter | Details |
|---|---|
| Model | FiiO JadeAudio KA13 |
| DAC Chip | Dual CS43131 |
| Outputs | 3.5mm, 4.4mm Balanced |
| Power Output | 550mW |
| Compatibility | iOS, Android |
| Type | Portable DAC Amplifier |
Description
Brand: FiiO JadeAudio
Model: KA13
Product Name: Dual CS43131 Portable DAC Amplifier
DAC Chip: Dual CS43131*2
Op-Amp Chip: Dual SGM8262*2
Maximum Supported Audio Formats: PCM 384kHz/32bit, DSD256
Connection Type: Type-C USB2.0
Output Power:
Output 1: L+R≥170mW+170mW (32Ω single-ended/THD+N<1%)
Output 2: L+R≥550mW+550mW (32Ω balanced/THD+N<1%)
Signal to Noise Ratio:
SNR1: ≥123dB (32Ω/A-weighted/single-ended)
SNR2: ≥122dB (32Ω/A-weighted/balanced)
Noise Floor: PO<1.7μV (A-weighted); BAL<3.1μV (A-weighted)
Output Impedance: <1.7Ω (32Ω load/single-ended) / <1.8Ω (32Ω load/balanced)
THD+N: <0.0005% (32Ω/single-ended) / <0.0005% (32Ω/balanced)

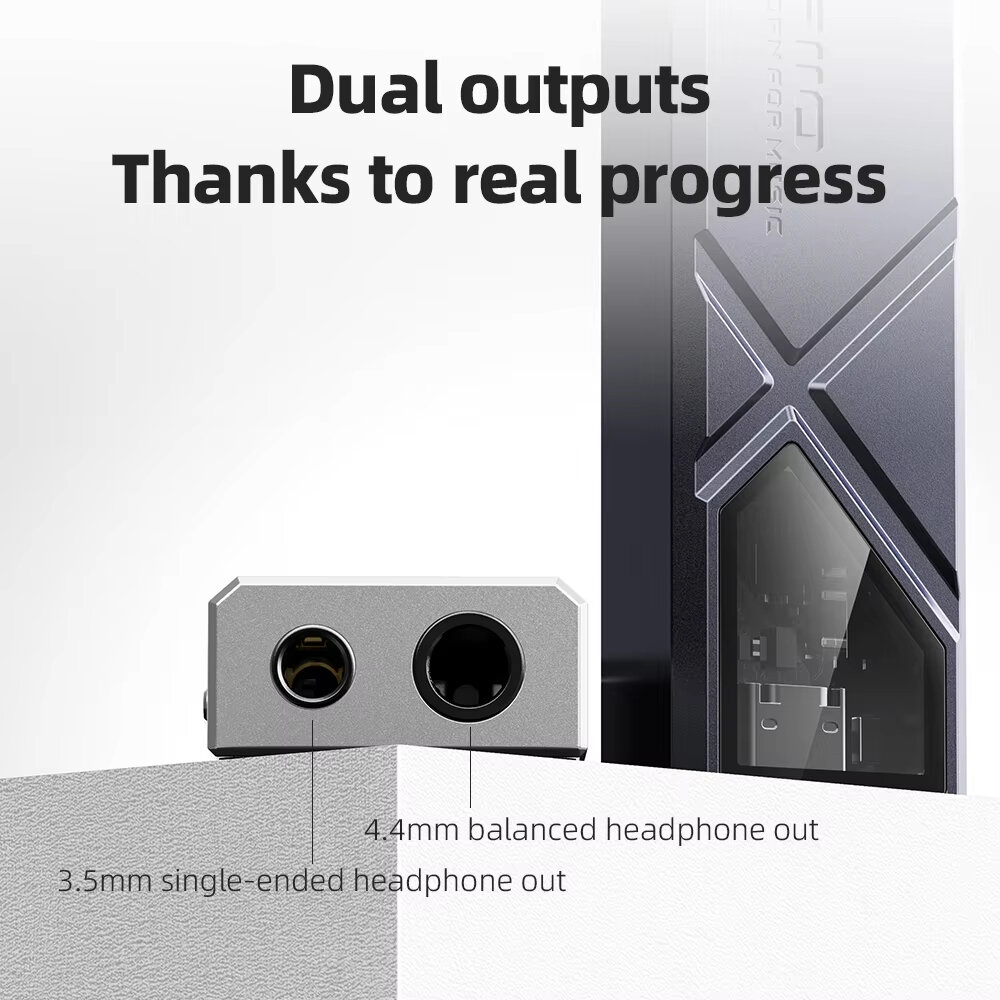

Headphone Outputs: Single-ended 3.5mm, Balanced 4.4mm
Dimensions: About 56.3x22x10.5mm
Weight: About 18.5g (excluding cable)
Colors: Black/Silver
Features:
1. High Output Power: Delivers up to 550mW+550mW in balanced mode for powerful audio performance.
2. Premium Dual DACs: Incorporates dual CS43131 DAC chips for superior sound quality.
3. Versatile Audio Output: Equipped with dual 8262 amplifiers supporting both 3.5mm and 4.4mm outputs.
4. High-Resolution Audio: Supports PCM up to 384kHz/32 bit and DSD256 for high-fidelity playback.
5. Additional Connectivity: Offers SPDIF output support for broader compatibility.
Package Include:
1x FiiO JadeAudio KA13 Portable DAC Amplifier
1x Type-C to Type-C Cable
1x Type-C to iP Cable
1x Type-C to USB-A Cable
1x Manual
Additional information
| Weight | 0.1 kg |
|---|
