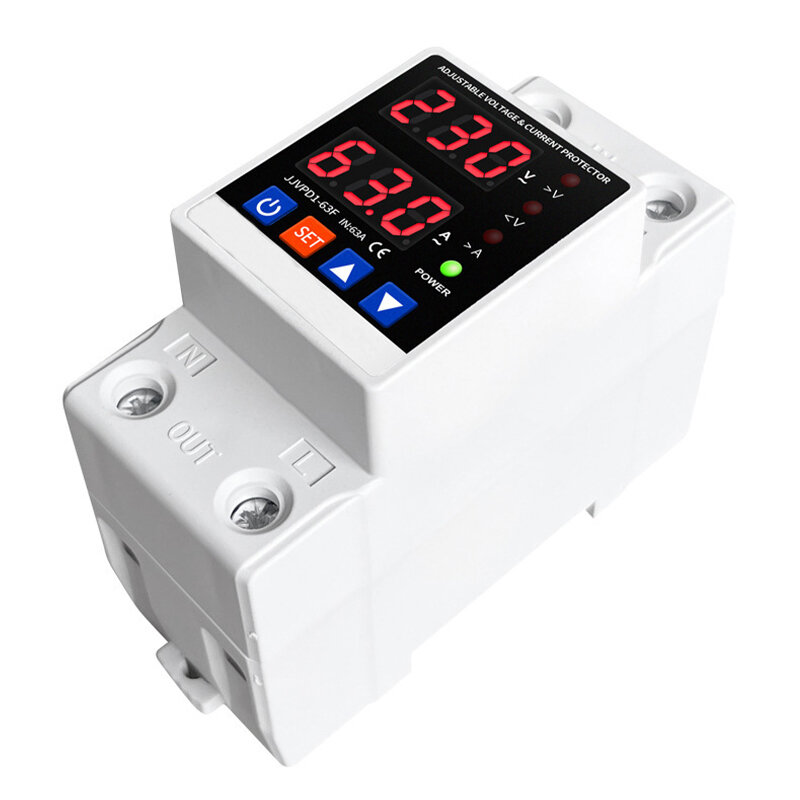

Dual Display Adjustable Digital Voltage Relay Surge Protector Over Current Protection 40A 63A 80A

Name: Dual Display Adjustable Digital Voltage Relay Surge Protector Over Current Protection 40A 63A 80A
Price: 25.05 AUD
Availability: InStock
Rating: 4.8 (35 reviews)

$25.05

Product Highlights

Introducing the Dual Display Adjustable Digital Over Under Voltage Relay! This nifty device is designed to keep your electrical systems safe and sound. Whether you’re managing a small workshop or a larger industrial setup, this relay offers a reliable solution for monitoring voltage levels and protecting your equipment from surges and over-current situations. With its sleek design, it easily fits onto a standard DIN rail, making installation a breeze.

The dual display feature allows you to monitor both voltage and current levels simultaneously, providing you with real-time data at a glance. You can easily adjust the settings to suit your specific requirements, whether you need 40A, 63A, or 80A protection at 230V. This flexibility ensures that you have the right level of protection for your unique setup.

One of the standout features of this relay is its surge protection capability. It acts as a guardian for your devices, preventing damage from unexpected voltage spikes. Additionally, the over-current protection ensures that your equipment operates within safe limits, reducing the risk of overheating or failure. With this relay in place, you can have peace of mind knowing that your electrical systems are well-protected.

Installation is straightforward, and the user-friendly interface makes it easy to navigate through settings. Whether you’re a seasoned electrician or a DIY enthusiast, you’ll appreciate the simplicity of this device. Plus, its compact size means it won’t take up too much space in your electrical panel.

Pros

Dual display for real-time monitoring of voltage and current.
Adjustable settings for 40A, 63A, or 80A at 230V.
Effective surge protection to safeguard your equipment.
Over-current protection to prevent overheating.
Easy installation on DIN rail.
User-friendly interface for quick adjustments.

Cons

May require some technical knowledge for optimal setup.
Limited to specific current ratings (40A, 63A, 80A).
Not suitable for very high voltage applications.

Summary

Parameter	Specification
Model	Dual Display Over/Under Voltage Relay
Voltage	230V
Current Ratings	40A, 63A, 80A
Protection Type	Surge Protector, Over Current Protection
Mounting Type	Din Rail
Adjustability	Yes

Description
Additional information

Description

Specifications:
1. Model number:JJVPD1-63F
2. Power supply:230VAC 50/60Hz
3. Max.Loading power:
1~40A Adjustable(default:20A)
1~63A Adjustable(default:40A)
1~80A Adjustable(default:60A)
4. Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V-295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:1s)
Over-voltage recovery delay time:15~500s(default:30s)
5. Under-voltage protection value range:140V-210V -OFF(default:170V)
Under-voltage recovery voltage range:145V-215V (default:190V)
Under-voltage protection action time:0.15~30s(default:1s)
Under-voltage recovery delay time:15~500s(default:30s)
6. Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
1-80A(default:60A)
Over-current action range:0.1~30 second (default:1s)
Over-current recovery delay time:1s~500s(default:30s)
7. Power-on delay time:1s~500s(default:10s)
8. Power consumption: <2W
9. Electric machinery life : 100,000 times
10. Installation:35mm DIN rail

Features:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Current calibration: Current +- 9/5% adjustable A15
9. Restore factory settings: press the down button for more than 12s
10. Fault inquiry: Press the UP button from more than 12S

Package Include:
1x Voltage Protector
1x Instructions

Notice: When you first connect the product, you have to wait about 10 second ( Power-on delay time:15~500s(default:10s)), after the red light turn off, then the product will work.
