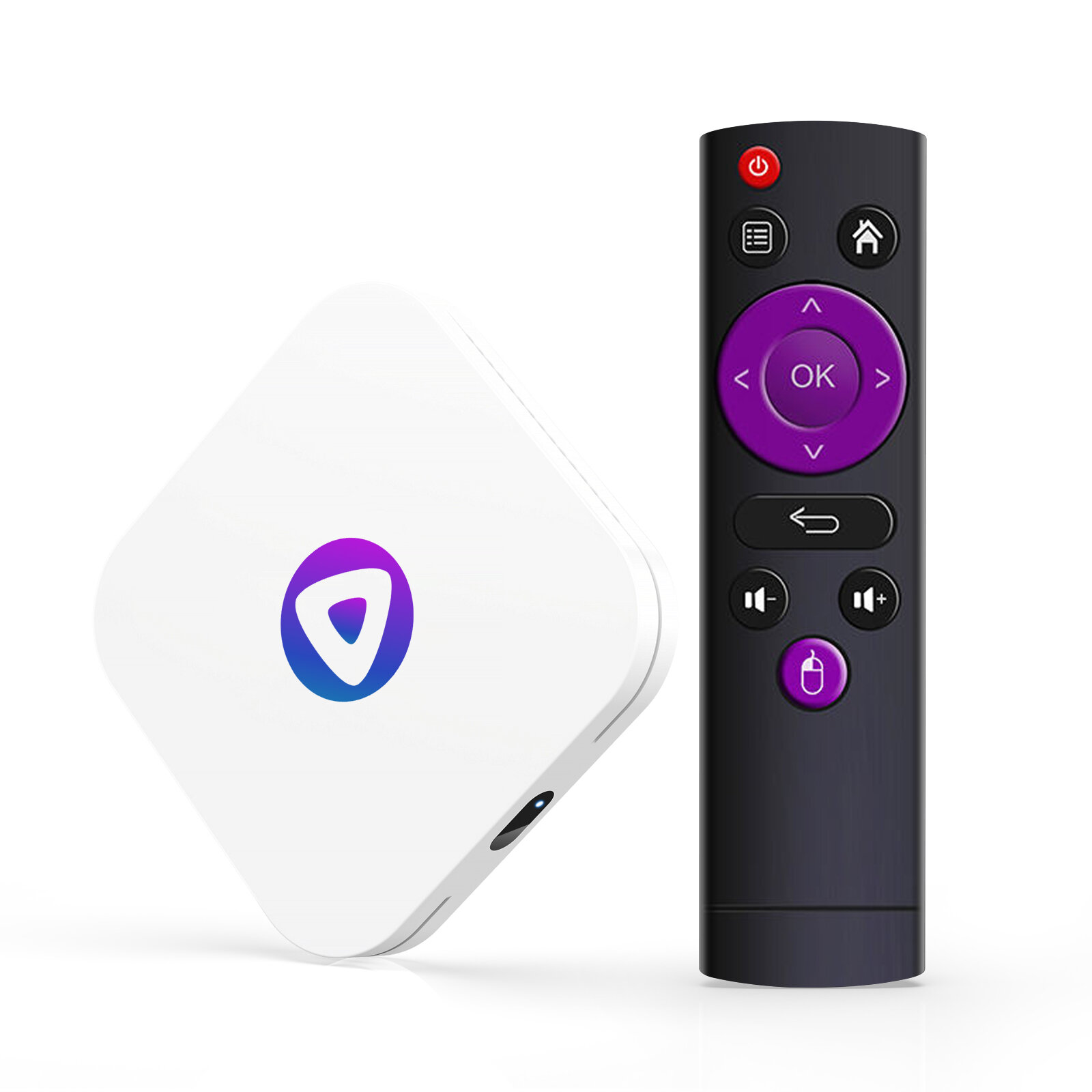

[4+32G] H96Max M1 Smart TV Box Android 13 Rockchip 3528 Quad 4K 8K Video Dual WIFI6 Set Top Box H.265 Bluetooth 4.0 Player

$56.61

CHECK PRICE

Description



System
CPU Quad Core ARM Cortex-A53
GPU Mali-450
Memory 4GB
Flash 32GB
WiFi WLAN 802.11a/b/g/n/ac
Bluetooth BT 4.0
I/O 1*HD 4K*2K UHD Output
1*USB 1*USB 2.0
1*IR Reciver Remote Reciver Connect
1*DC  5V/2A
1*AV 480i/576i for CVBS
Software
OS Android 13.0
Video ·Video Decoder
·Real-time video decoder of
     MPEG-1, MPEG-2, MPEG-4
     H.263, H.264/AVC, H.265/HEVC, MVC
     VC-1
     AVS, AVS+,AVS2
·MMU Embedded
·Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt
·Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is
  supported by H.264
·H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps
·H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
·AVS2 4KX2K @60fps
·MPEG-1, Main profile, up to 1080P @ 60fps
·MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps
·MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps
·AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps
·AVS-P16 (AVS+), up to 1080P @ 60fps
·H.263, up to 576P @ 60fps
·VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps

·Video Encoder
·Support video encoder for H.264, HP@level4.2
·H.264 maximum frame rate is up to 1920×1080 @60fps
·Capable of encoding HEVC Main Profile @ L4.1 High-tier
·H.265 resolution and frame rate are up to 1920×1080 @60fps
·JPEG encoder included

·JPEG decoder
·Input JPEG file : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 sampling formats
·Output raw image : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 semi-planar
·Decoder size is from 48×48 to 8176×8176(66.8Mpixels)
·Support JPEG ROI(region of image) decode
·Maximum data rate is up to 76million pixels per second

·Video OUT
·Display Interface
  ·Support HD 2.0b output up to 4K 10bit @60Hz
  ·TV interface: TV encoder 10bit out for DAC
  ·HD interface:
        24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)
        Max output resolution 4K for HD, 480i/576i for CVBS

·HD
·Compliant HD 2.0b
·Support YUV420 4k x 2k @ 60fps
·Support for 4k x 2k and 3D video formats
·Support for up to 10.2bps bandwidth
·Compliance HD compliance Test specification 1.4 and 2.x
Audio Supports MP3, AAC, WMA, RM, FLAC
Image HD JPEG、BMP、GIF、PNG、TIF
Language Multi-Language
Appliactions
Online Browse all video websites,support Netflix,Hulu,Youtube, etc.
Apps Apps download freely form Google Play、Apkpure store etc.
Medium Local Media playback,Support HDD, U Disck
Talk online Support  SKYPE ,MSN , facebook ,twitter ,QQ  etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing
Product dimension: 96*96*16.8mm
Unit products (G.W.): 122g
Unit packing: 175*103*53mm
Unit packing (G.W.): 356.5g
Accessories
HD cable *1 IR Remote *1 User Manual *1 Package box *1 Power adapter *1



Additional information

Weight 0.4 kg
